Transport hand
Ultra lightweight hand for small robots
“Lightweight materials” + “Molding technology” realize a hand shape that fits the workpiece
Lightweight and flexible transport hand
Lightweight body supports robot arms with small payload capacity
Customized hand shape to suit the workpiece
Amazing facts!
── Introducing ideas and technologies ──

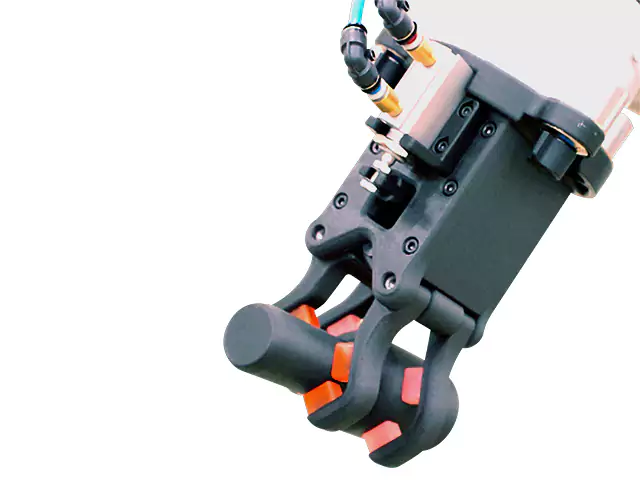

The Transport Hand is for cooperative robots to transfer a wide variety of workpieces.
CFRP additive manufacturing is used for the components.
The high strength-to-weight ratio enables the production of free-form shapes that could not be produced with conventional machining methods.
Along with the lightweight and high-strength body, the hand shape can be freely customized to suit the workpiece.
Automation of a wide variety of workpiece transfers.
This is the point!
Lightweight due to CFRP and hollow interior
Excellent!

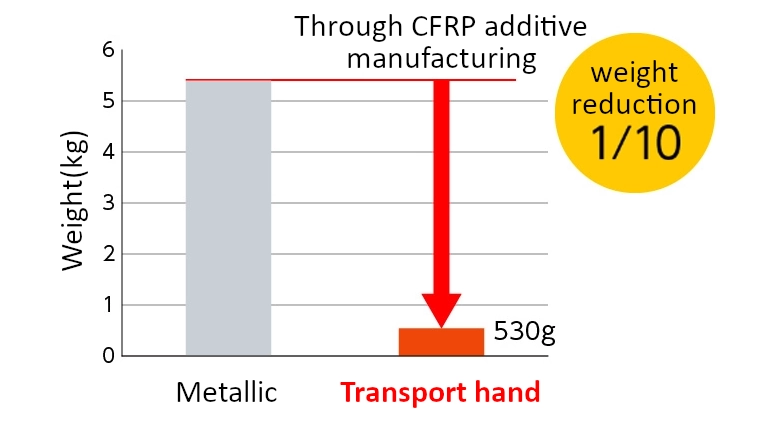

Through CFRP additive manufacturing, Transport hand achieves weight reduction to 1/10th: from 5.3kg to 530g.
Weight reduction is achieved by material replacement from metal to CFRP with a specific gravity: 1.2 g/cm3 and hollow internal structure.
This is the point!

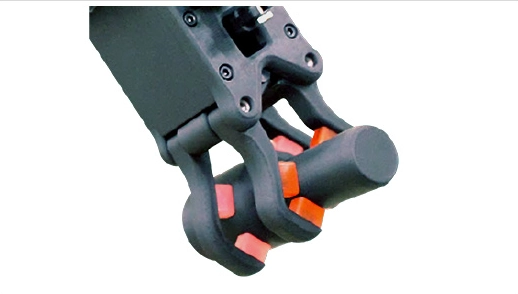

Customizable hand geometry to accommodate a wide variety of workpiece shapes
Excellent!
Workpiece shape

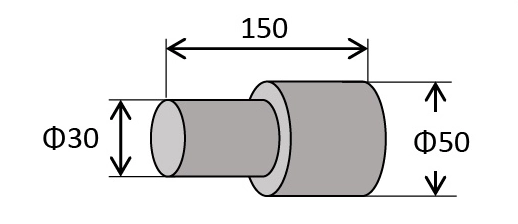

Cylinder (2 steps)

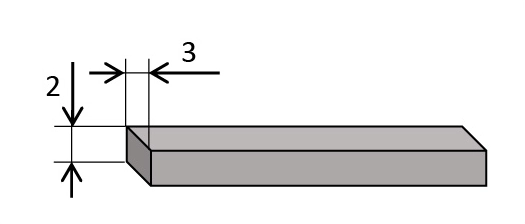

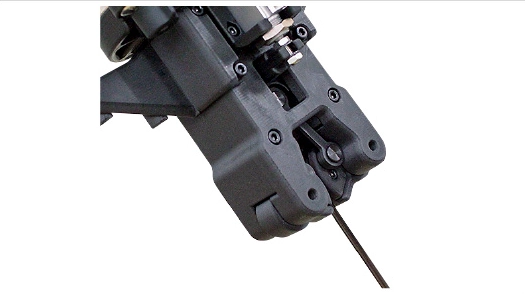

Flat wire
Workpiece gripping dimensions (mm)
Jaw shape
Development / product concept
“Current status and challenges”
- The shift to smart factories and the promotion of carbon neutrality have led to calls for manpower, resource, and energy conservation at manufacturing sites, and automation through the introduction of robots is one of the solutions to these needs.
- The need for automation in workpiece transfer is also increasing, and while emphasis is placed on the lightness of the hand due to the robot’s limited payload capacity, at the same time, functionality is required to grasp a wide variety of workpieces and transfer them to the desired posture and position.
“Development points”
- The “Transport Hand” uses CFRP additive manufacturing for its components, enabling the manufacture of lightweight, high-strength bodies and free-form shapes that cannot be produced with conventional machining methods.
- The hand shape can also be freely customized to suit the workpiece.
- Since the hand is ultra-lightweight compared to metal hands, it can transport heavier workpieces when the same robot arm is used.
Product specification
*Reference values for specifications of listed products.
Special design and production are available according to the purpose and application.
- Lightweight: 530g (1/10th of a comparable metal holder)

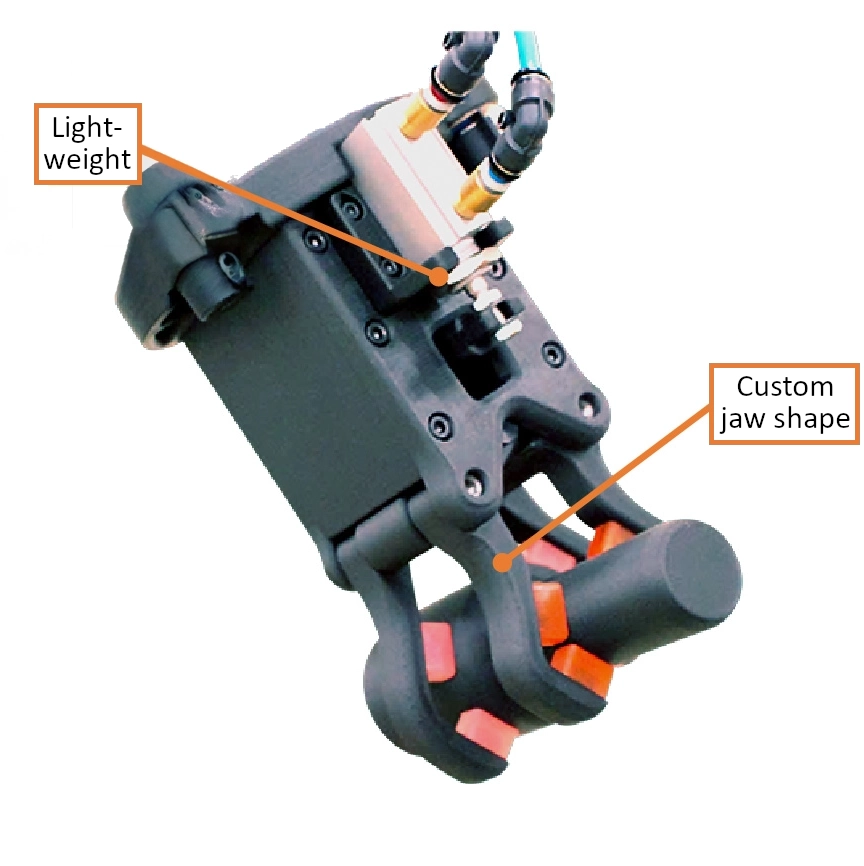

- Jaw shape can be customized to match the workpiece
Example target work: step cylinder shape ø50 (+ ø30) × 150 mm
Automatic tool change (ATC) mechanism (power source: air)

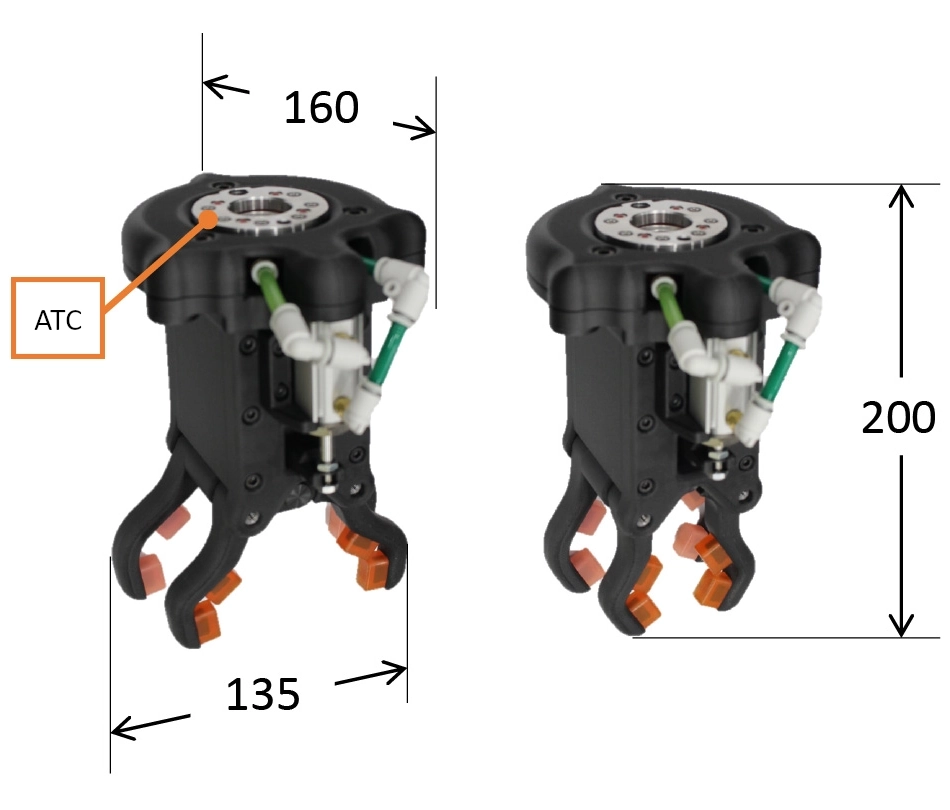

Size (mm)
See diagram
Weight (g)
530 *
Grasping power source
Air (0.4MPa)
Grasping force (N)
16 **
Target workpiece shape (mm)
See diagram
*: Excluding parts such as tool change
**: Theoretical calculation value at a pressure of 0.4MPa (not an experimental evaluation value)
