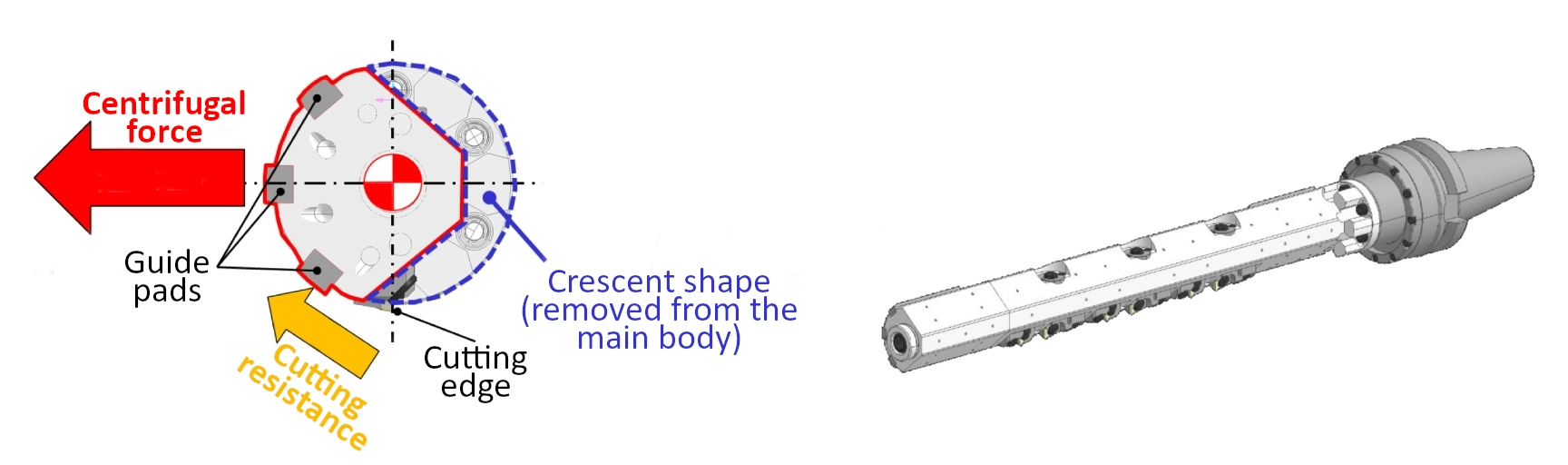

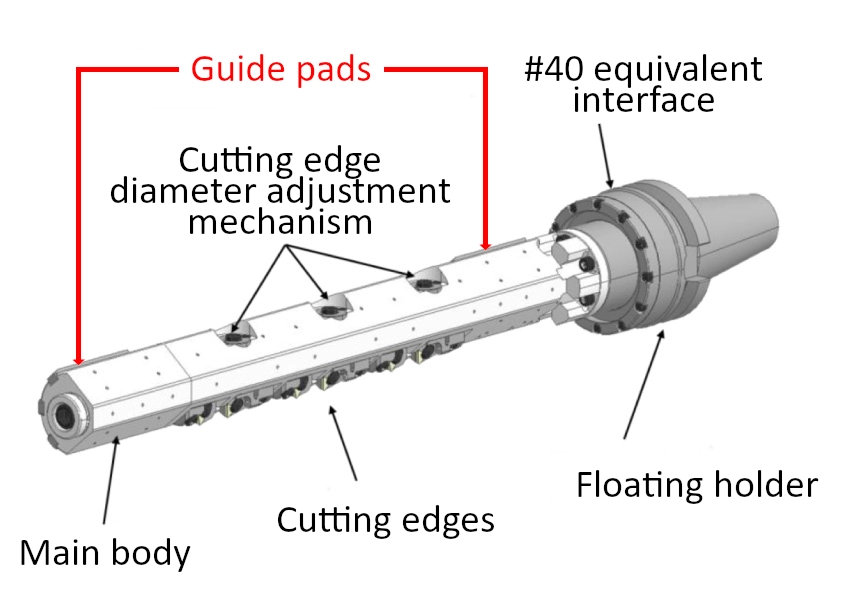

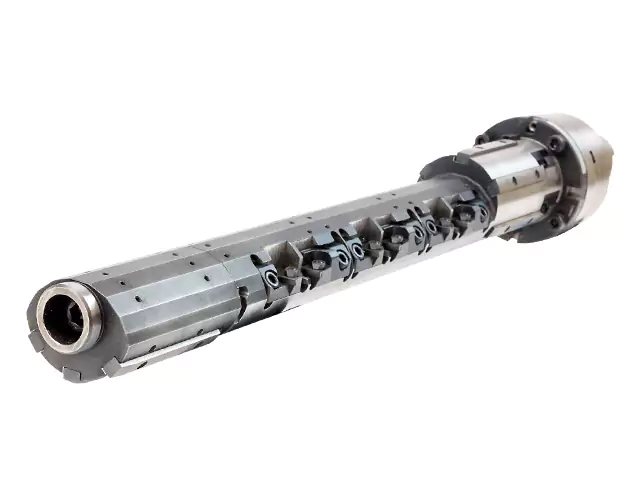

The crescent line bar consists of an unbalanced shape of the body and a special guide pad arrangement.

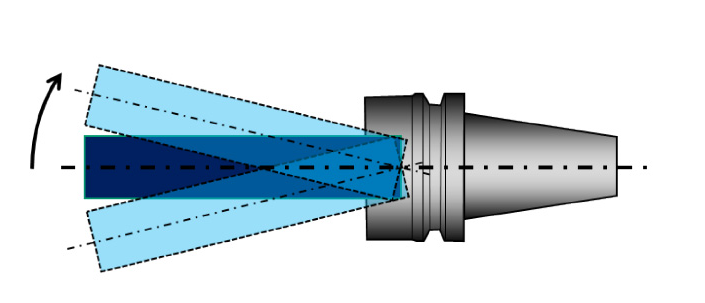

Centrifugal force generated during rotation controls the pressing pressure of the guide pads.

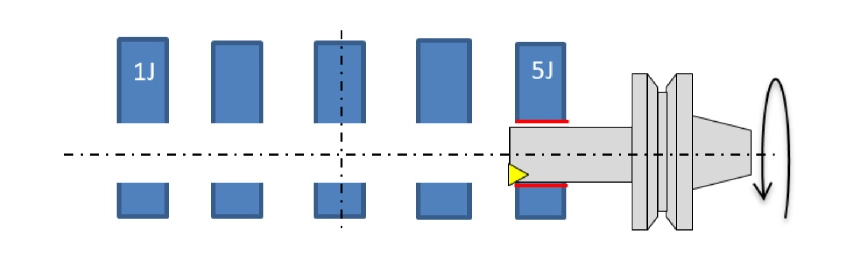

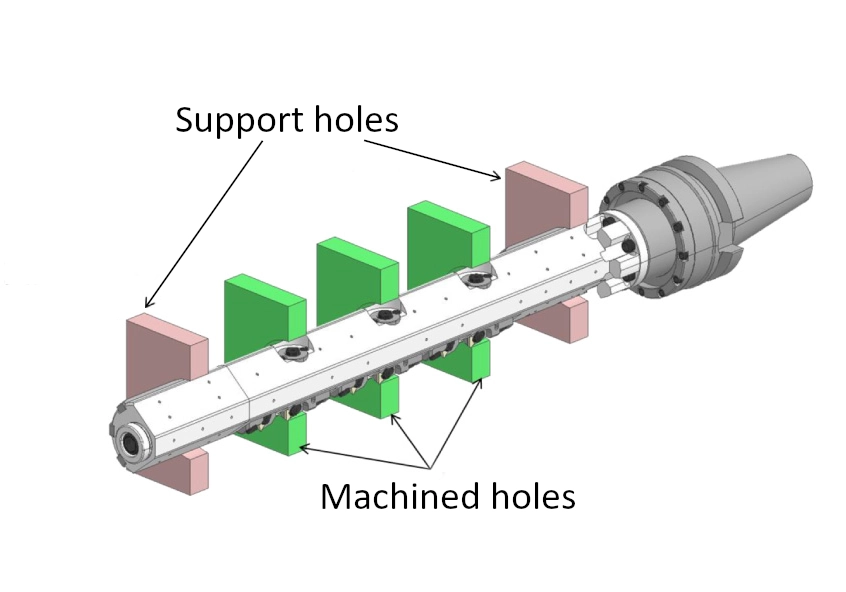

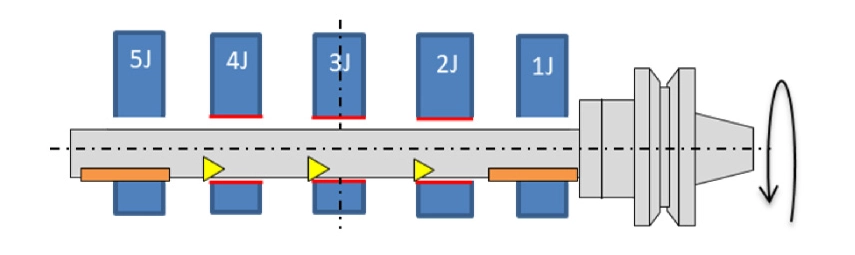

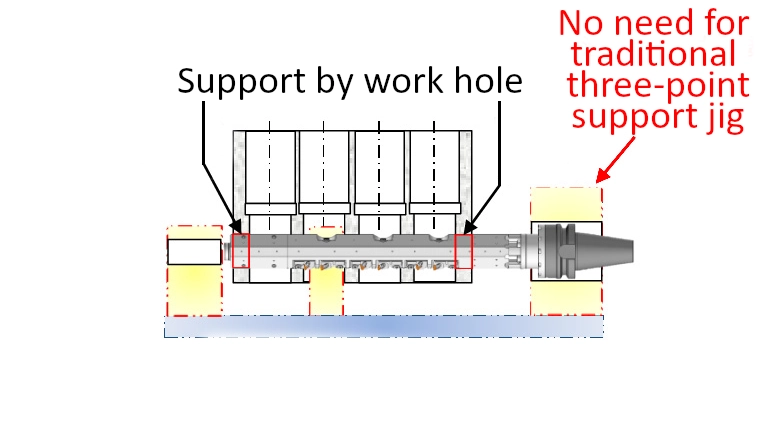

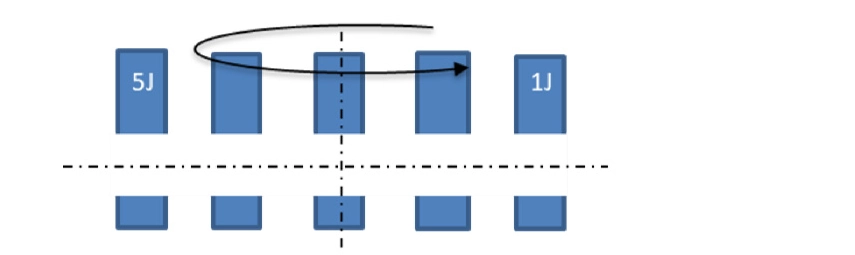

Since both end holes of the crank hole are used as guide holes, the support bushings of the jig are no longer necessary, enabling machining with a machining center.

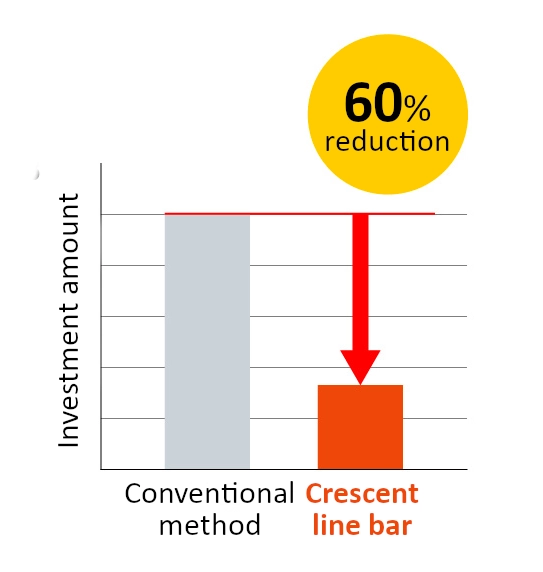

Realizes “investment reduction” and “high-mix multi-product” production.
